DBT-600, 100 PC BOX
Part # 20225
DryConn Direct Bury 600 Silicone Tube with Tan Wing: Waterproof your outdoor splices with the DryConn DBT-600. This two part system allows you to make More...
WHERE TO BUY

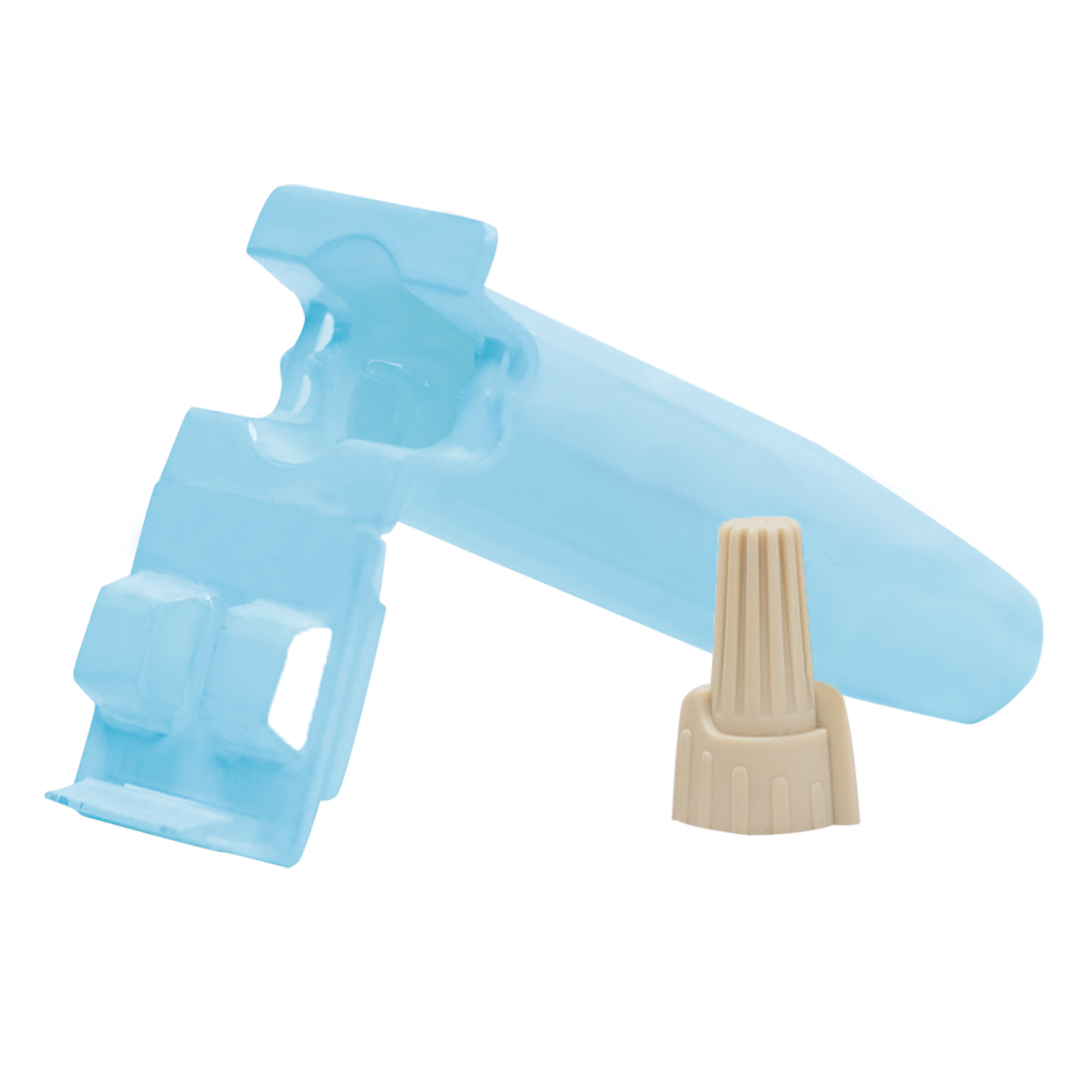

DryConn Direct Bury 600 Silicone Tube with Tan Wing: Waterproof your outdoor splices with the DryConn DBT-600. This two part system allows you to make a connection with a trusted tan wing-style connector, then waterproof your splice with a dielectric silicone filled tube. The tube features a patent pending snap-fit lid for maximum strain relief on splices. The DryConn DBT-600 is UL listed for waterproof and direct bury connections.
- UL Listed and 600V Rated
- Waterproof and corrosion proof
- Patented snap fit lid provides strain relief
- UV and impact resistant
- Max. Voltage: 600V max. building wire (1000V max. signs or luminaries)
- Wire Type: Copper/Copper
- Wire Range: Min #22/Max #8
- Temperature Rating: -105 deg C (221 deg F)
- Silicone Sealant Temperature: -45 deg F to 400 deg F
- UL Designation: GT1
| RoHS Compliant (Restriction of Hazardous Substances Directive) ° | Contact Compliance |
| Each in Package Height (in) * | 7.5 |
| Each in Package Width (in) * | 10.25 |
| Each in Package Length/Depth (in) * | 10.25 |
| Each in Package Weight (lbs) * | 6.68 |
| Inner Pack Weight (lbs) * | 6.68 |
