DBSR Yellow, 10pc. Bag

Part # 63315

DryConn Direct Bury Waterproof Wire Connector with Strain Relief, Yellow: Waterproof your outdoor wire tracer splices with the DryConn DBSR Direct More...

WHERE TO BUY

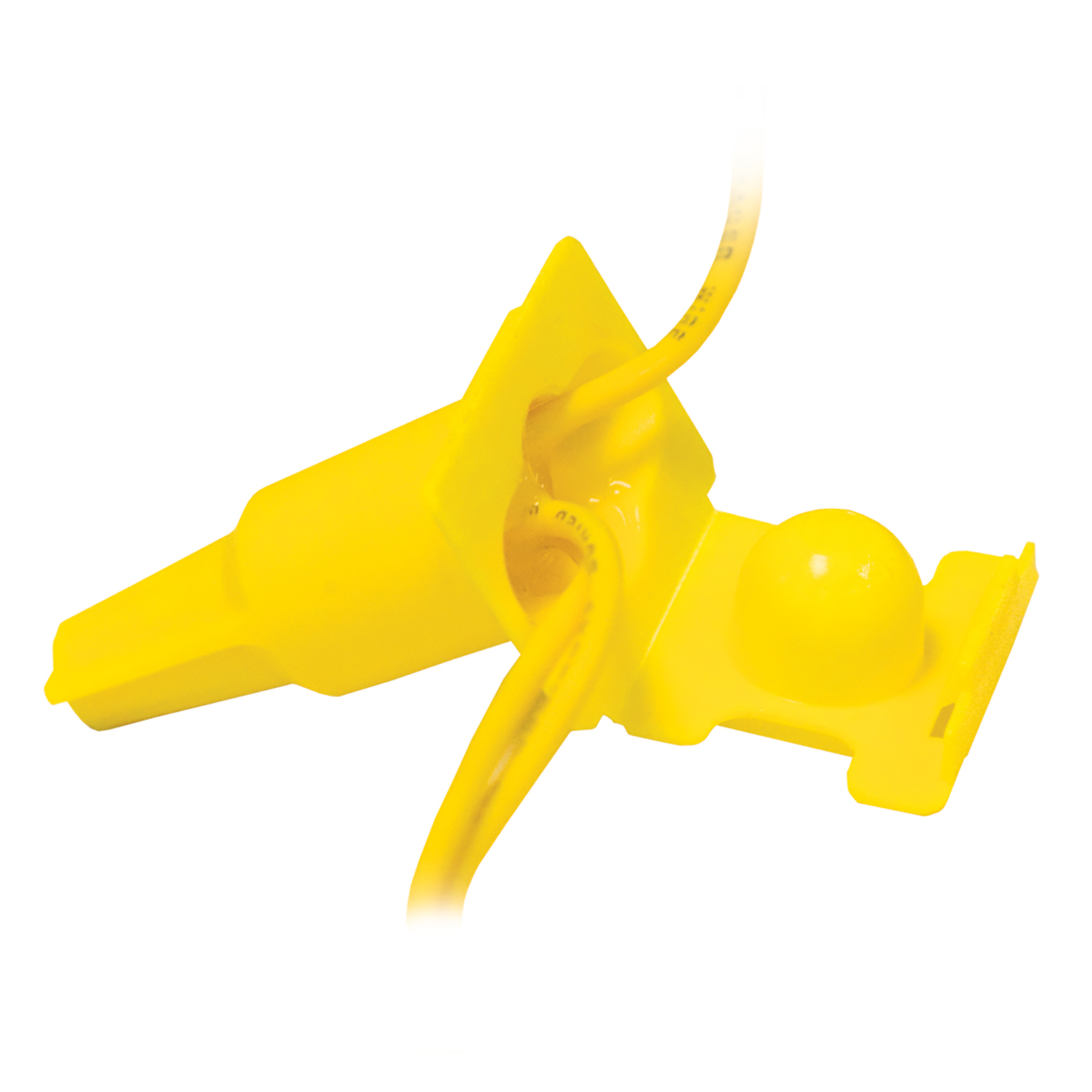

DryConn Direct Bury Waterproof Wire Connector with Strain Relief, Yellow: Waterproof your outdoor wire tracer splices with the DryConn DBSR Direct Bury Wire Connector with Strain Relief. Pre-filled with dielectric silicone that never hardens and made with an easy latch lid that provides strain relief, you can be sure your connection is safe and waterproof. Created for use in tracer wire and cathodic applications.

  • UL Listed 600V for dry, wet or above/below grade applications when used in an enclosure
  • For use in Direct Bury applications when operating at 30V or less
  • Pre-filled with dielectric silicone sealant that never hardens
  • Waterproof and corrosion proof
  • Easy latch lid provides strain relief
  • One piece for easy installation
  • Silicone Sealant Temperature: -45 deg F to 400 deg F
  • Designed for tracer splices and cathodic applications
  • Max. Voltage: 600V
  • Wire Type: Copper/Copper
  • Wire Range: Min #22/Max #6
  • Silicone Sealant: -45 deg F to 400 deg F
  • UL Designation: MSR
  • UL 486G listed

RoHS Compliant (Restriction of Hazardous Substances Directive) ° Contact Compliance
Each in Package Height (in) * 1.5
Each in Package Width (in) * 11
Each in Package Length/Depth (in) * 6
Each in Package Weight (lbs) * 0.351
Inner Pack Weight (lbs) * 3.51
