2-Port Al/Cu Wire Connector (10-Pack)

Part # 95015

King Innovation’s AlumiConn Aluminum to Copper Lug is approved by the Consumer Product Safety Commission (CPSC), UL, and numerous insurance companies More...

WHERE TO BUY

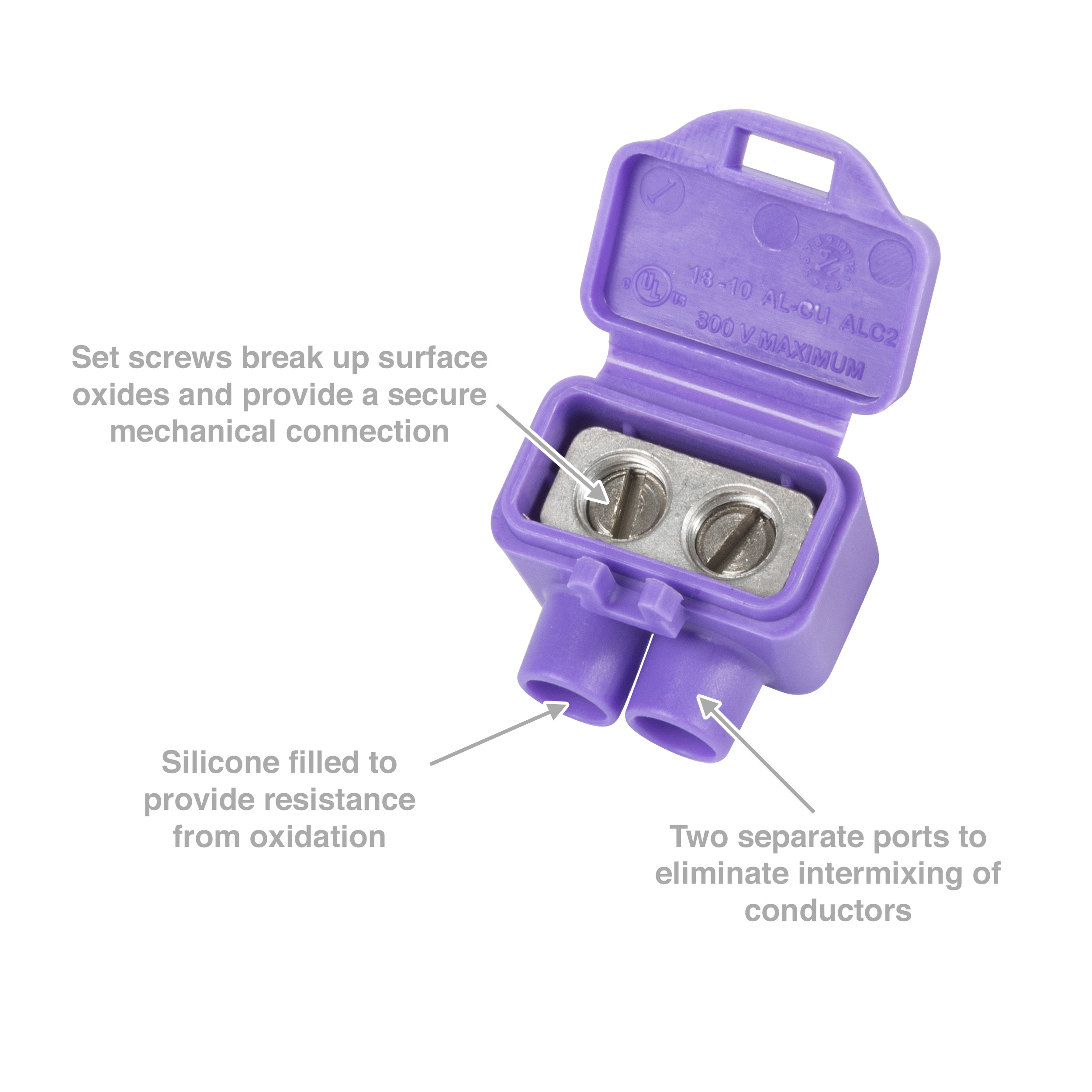

King Innovation’s AlumiConn Aluminum to Copper Lug is approved by the Consumer Product Safety Commission (CPSC), UL, and numerous insurance companies as a safe method for aluminum wiring repair. AlumiConn is a lug style connector with two separate ports to eliminate intermixing of conductors. It coats aluminum wires with a thin layer of silicone sealant to provide resistance from oxidation, and uses set screws to break up surface oxides and provide a secure mechanical connection. Avoid a complete re-wire by using AlumiConn, the most cost-effective aluminum wiring repair solution available.

  • Approved by the consumer product safety committee (CPSC), UL listed, approved by insurance companies
  • Most cost-effective solution for repairing aluminum wiring systems
  • Two ports allow conductors to remain separate, permitting the lug to run at a lower temperature and provide longer term reliability
  • Secure mechanical connection

RoHS Compliant (Restriction of Hazardous Substances Directive) ° Contact Compliance
Each in Package Height (in) * 0.75
Each in Package Width (in) * 7
Each in Package Length/Depth (in) * 6
Each in Package Weight (lbs) * 0.134
Inner Pack Weight (lbs) * 1.34
